J1772 Type 1 to Type 2 EV Charging Adapter | 32A 250V
J1772 Type 1 to Type 2 EV Charging Adapter | 32A 250V
Couldn't load pickup availability

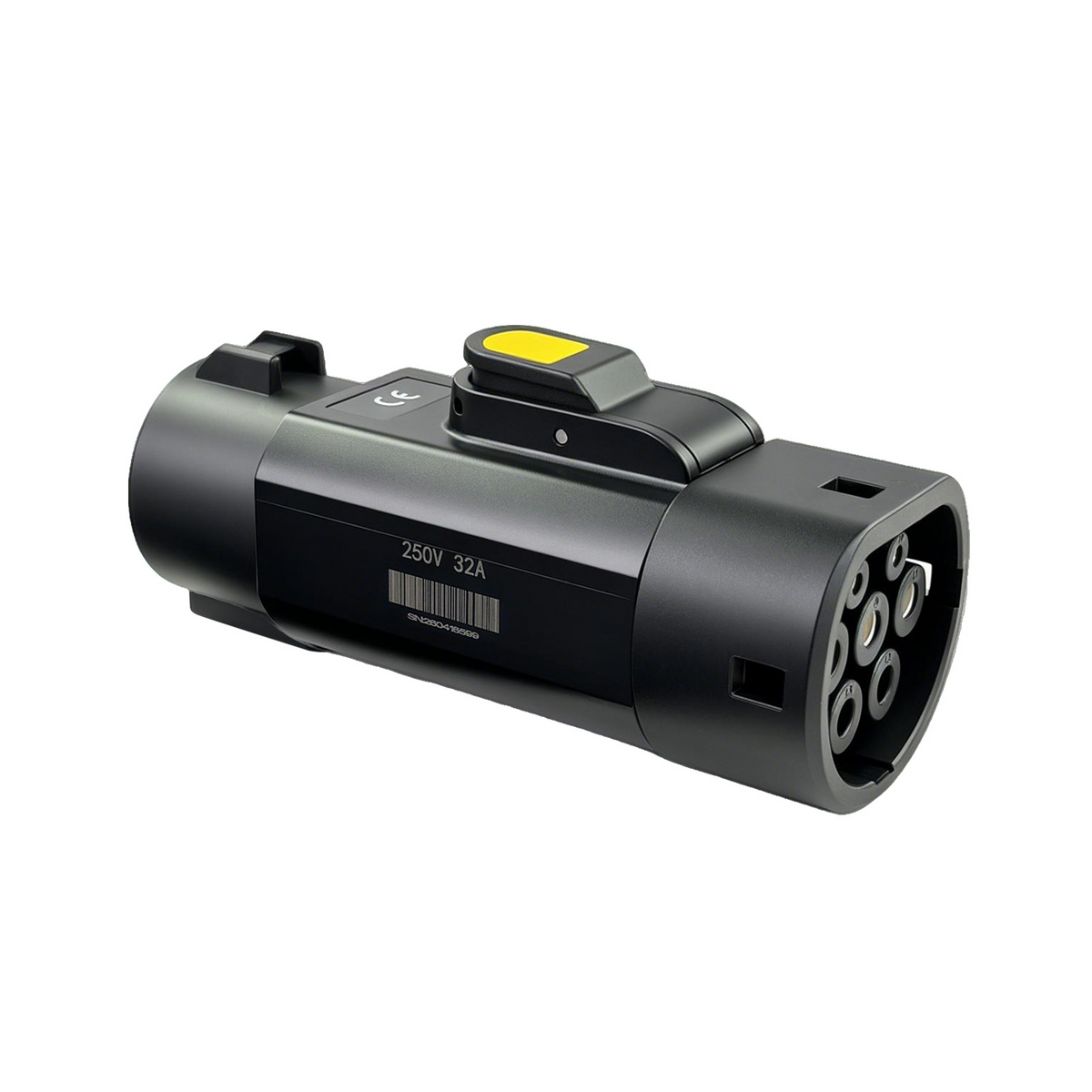

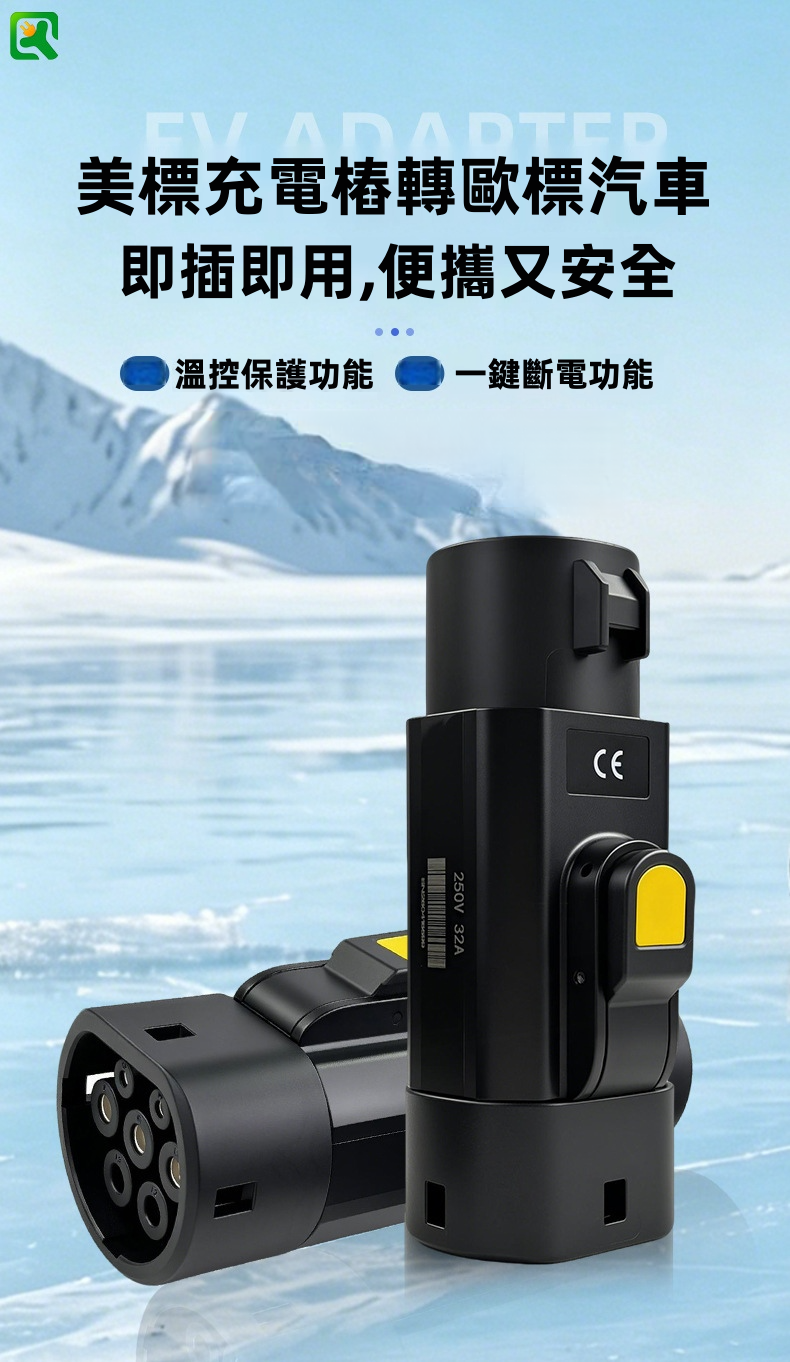

J1772 Type 1 to Type 2 Charging Adapter
For electric vehicles with Type 2 charging ports used in Hong Kong, this adapter can be used to connect to charging stations equipped with J1772/Type 1 AC charging guns. Priced at HK$599. Before charging, please check the vehicle's charging port, charging gun specifications, and equipment requirements; it is not for converting a Type 2 charging gun to a Type 1 vehicle port.
Product Features

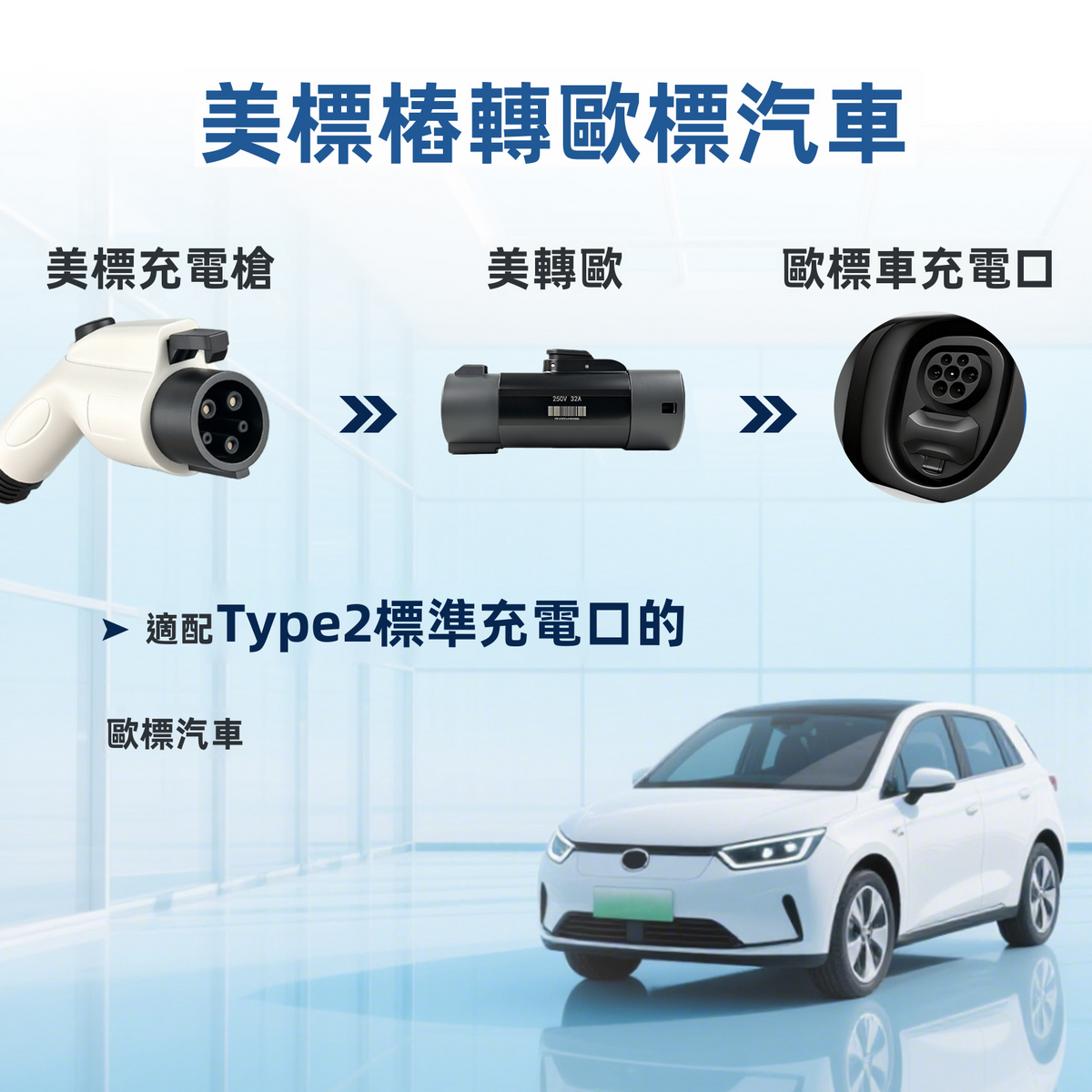

- Clear interface orientation:The J1772/Type 1 charging gun plugs into the adapter, and the Type 2 end connects to the vehicle.

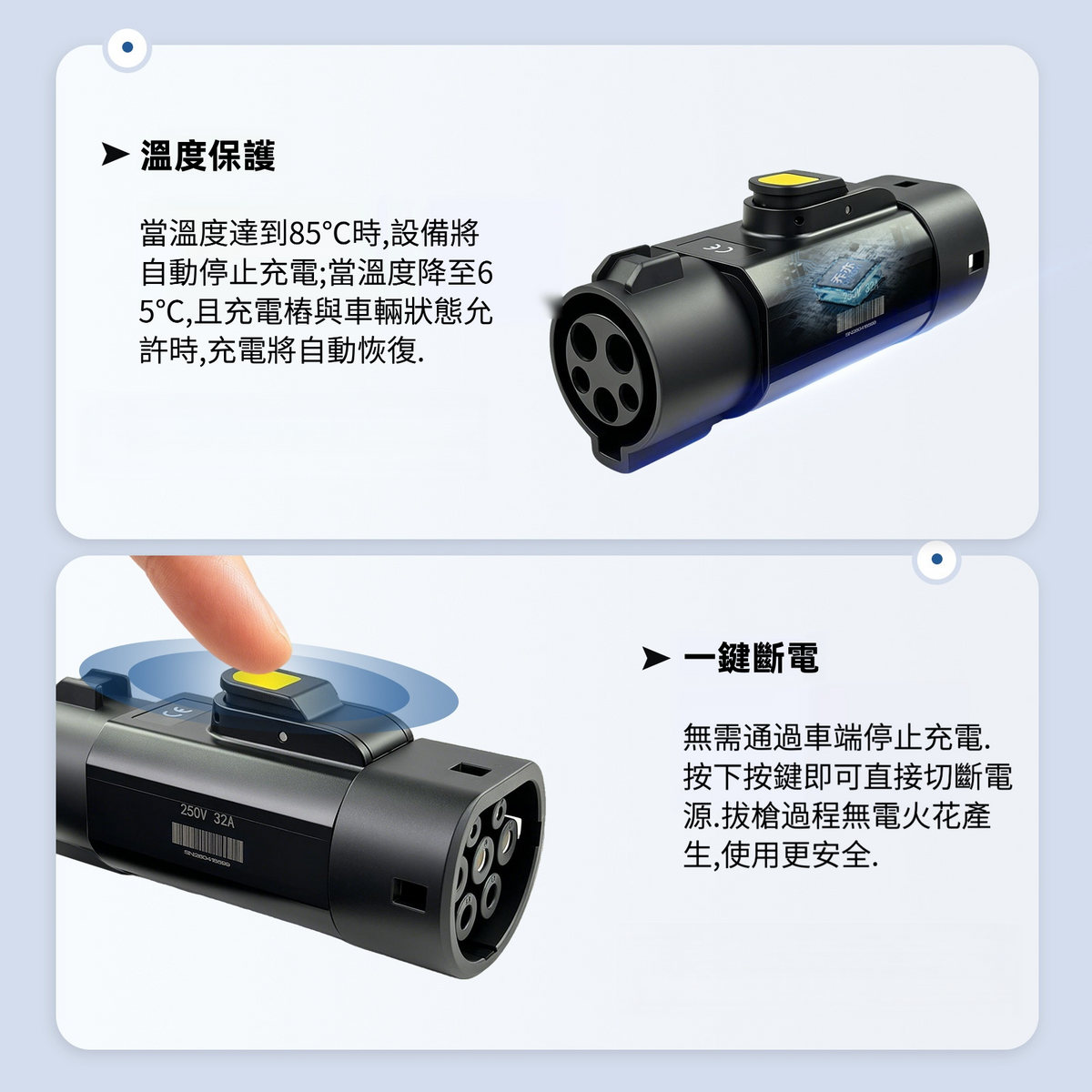

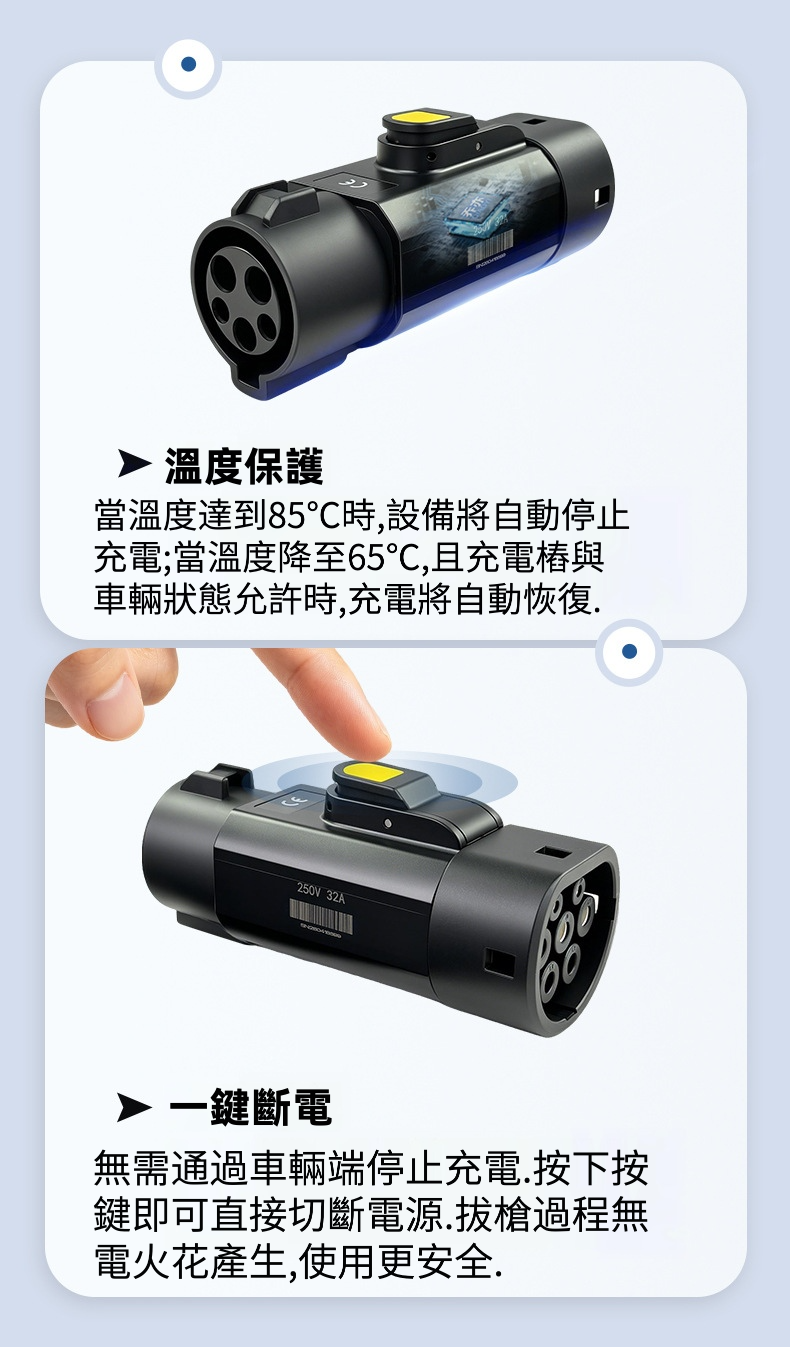

- Temperature monitoring protection:Product specifications indicate that charging will stop when the operating temperature reaches 85°C and can resume when it drops to 65°C and the status allows.
- One-button power cut-off:The body features a yellow button that can directly cut off the power without having to stop charging on the vehicle first.

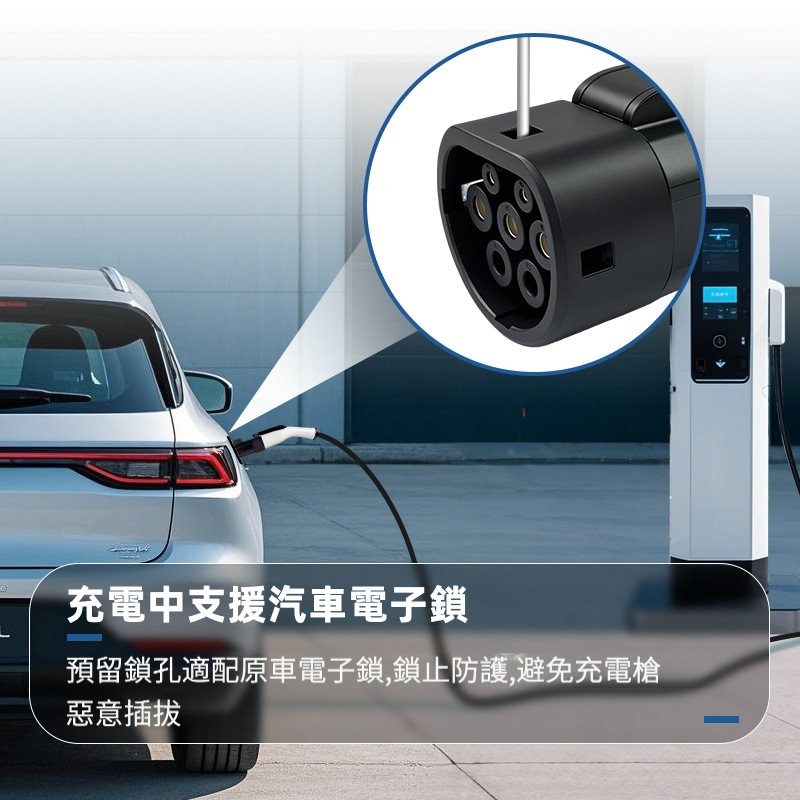

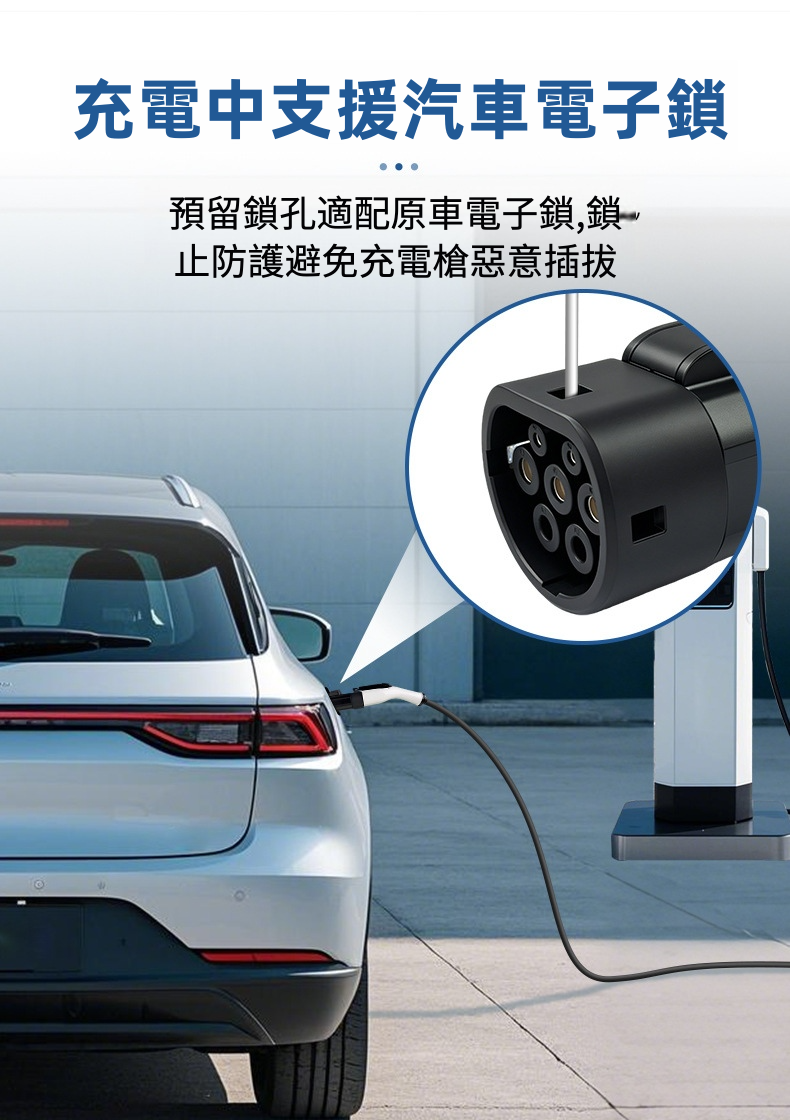

- Compatible with vehicle electronic locks:Features a reserved lock hole design that works with the vehicle's original electronic lock to secure the charging gun and reduce the risk of malicious unplugging.

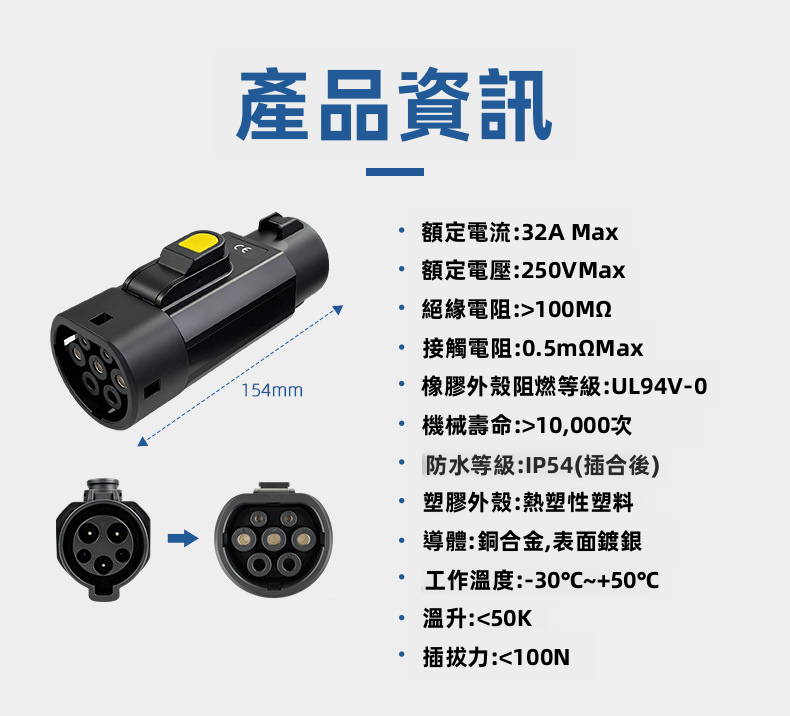

Specifications
| Item | Specification |
|---|---|
| Input interface | J1772/Type 1 charging gun |
| Output interface | Type 2 (vehicle end) |
| Rated current | 32A Max |
| Rated voltage | 250V Max |
| Maximum charging power | Approx. 7kW (actual depends on charging equipment, vehicle, and power supply conditions) |
| Temperature protection | Automatic stop at 85°C; resumes when it drops to 65°C and status allows |
| Protection level | IP54 (when mated) |
| Flammability rating | UL94 V-0 |
| Housing material | Thermoplastic plastic |
| Conductor | Copper alloy, silver-plated surface |
| Insulation resistance | >100MΩ |
| Contact resistance | 0.5mΩ Max |
| Mechanical life | >10,000 times |
| Temperature rise | <50K |
| Insertion/withdrawal force | <100N |
| Operating temperature | -30°C to +50°C |
| Total length | 154mm |
| Price | HK$599 |

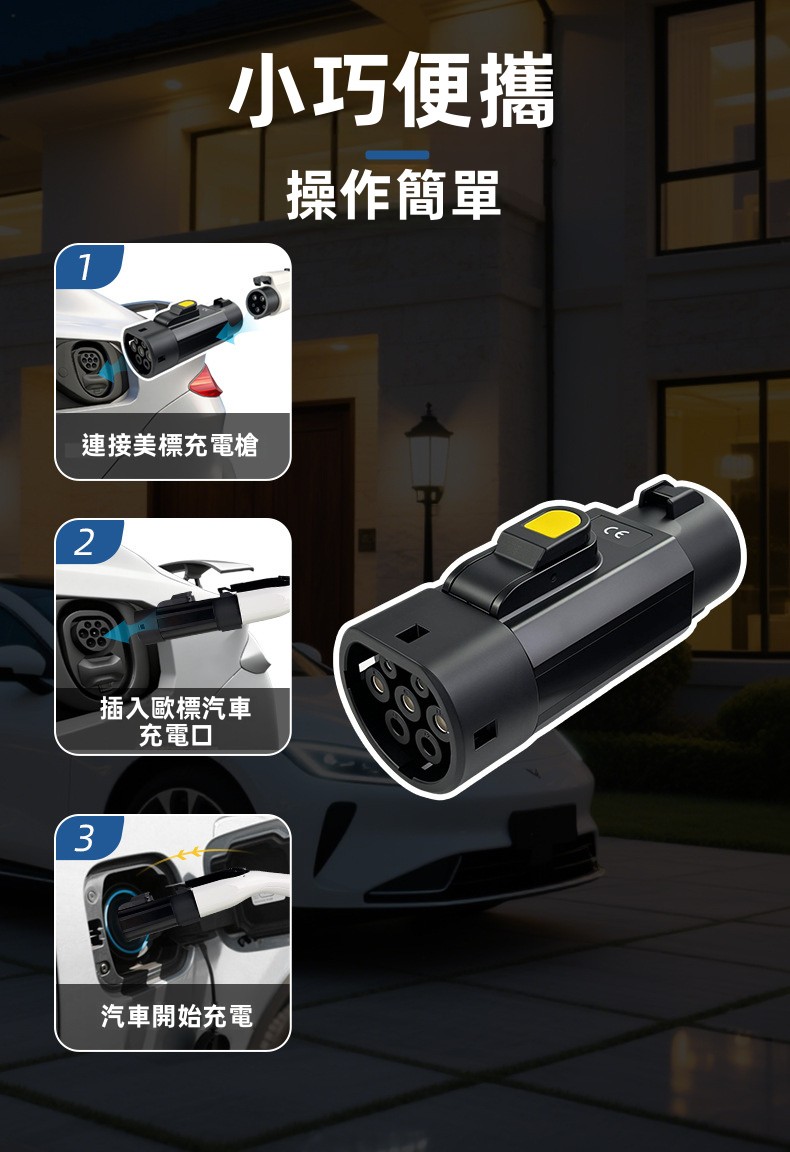

How to Use
- Plug the Type 1/J1772 charging gun into the socket end of the adapter.
- Insert the Type 2 end into the vehicle's charging port and confirm the connection and vehicle status.
- After charging is complete, stop charging according to the vehicle and equipment instructions, then unplug the connector; the one-button power cut-off button on the body can also be used to cut off the power.
Usage Scenarios and Precautions
Suitable for charging electric vehicles with Type 2 charging ports at charging stations equipped with American standard (J1772/Type 1) AC charging guns. When using, follow the vehicle and charging equipment instructions and comply with the usage regulations of individual charging stations. This product is for AC charging conversion only, and compatibility with all vehicle models and charging piles cannot be guaranteed.
Frequently Asked Questions FAQ
Q: Which vehicles can use it?
A: Suitable for scenarios where the charging port is Type 2 and needs to connect to a J1772/Type 1 AC charging gun; please check the compatibility requirements of individual vehicle models and charging equipment first, as it cannot be judged by brand alone.
Q: Can a Type 2 charging gun be used to charge a Type 1 vehicle?
A: No, the interface orientation of this adapter is for a Type 1 charging gun to a Type 2 vehicle, and it cannot be used in reverse.
Q: Can it always charge at 7kW?
A: Cannot be guaranteed. 32A/250V are the maximum specifications indicated on the product, and the actual power is limited by the vehicle, charging pile, and power supply conditions.
Q: How does temperature protection work?
A: Product specifications indicate that the equipment will automatically stop charging when the temperature reaches 85°C; when the temperature drops to 65°C, and the charging pile and vehicle status allow, charging will automatically resume.
Q: Can it be used on rainy days?
A: The product is rated IP54 when mated. The interface should still be kept dry when using, and follow the safety instructions of the charging station and vehicle.
Q: What is the "one-button power cut-off" for?
A: Pressing the yellow button on the body can directly cut off the power without having to stop charging through the vehicle first, making it convenient to end charging according to the normal procedure.
